Quick Details

  • Application: Laser Cutting
  • Condition: New
  • Laser Type: Fiber Laser
  • Applicable Material: Metal, stainless steel carbon steel
  • Cutting Thickness: 0.2-6mm(500w)/0.2-8mm(750w)(depending on material)
  • Cutting Area: 2500*1250mm
  • Cutting Speed: 8m/min(depending on material)
  • CNC or Not: Yes
  • Cooling Mode: Water Cooling
  • Control Software: perfect laser professional laser cutting software
  • Graphic Format Supported: AI, DXF, PLT
  • Place of Origin: Anhui, China (Mainland)
  • Brand Name: M&F
  • Model Number: MF-500
  • Certification: CE, ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Wholesale hot sale fiber laser metal cutting machine price
  • Positioning accuracy of X axis: ±0.05mm/m
  • Pulse repeated frequence: 0-300Hz
  • Min line width: 0.12mm(500w)/0.15mm(750w)
  • Laser wavelength: 1070nm
  • working power: 380V/50Hz/50A(500w) or 380V/50Hz/60A(750w)
  • Dimension: 4270mm*2420mm*1750mm
  • Weight: 3000kg
  • Keyword: metal laser cutting
  • Function: Cutting Metal Materials

Packaging & Delivery

Packaging Details standard export package. for Wholesale hot sale fiber laser metal cutting machine price.
Delivery Time Shipped in 25 days after payment
Product Description

Wholesale hot sale fiber laser metal cutting machine price

Model
M&F-500
M&F-1000
Laser medium
Diode-pumped continuous yb-doped fiber
Max cutting range
3000mm*1500mm
Max cutting speed
18 m/min
24 m/min
Cooling way
Water cooling
Laser wave length
1070nm
Laser output power
500W
1000W
Laser input power
2KW
5KW
Min line width
≤0.1mm
≤0.125mm
Cutting depth
0.2--5mm
0.2--8mm
Driving way
Imported servo motor
Tranmission way
Y-axis importe gear rack double driver、X-axis imported gear rack
Power requirements
380V/50HZ
Environment temperature
5—35 ℃
Continous working time
24 hours
Weight of the machine
3000 kg
Outline size
4270mm*2420mm*1750mm (length*width*height)

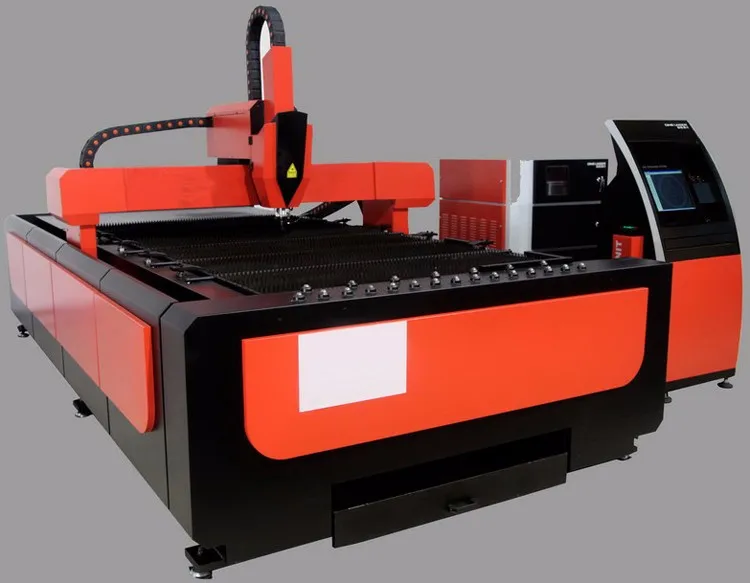

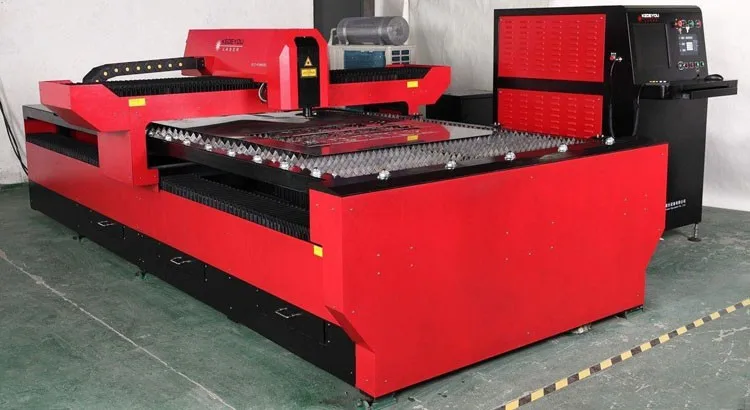

Detailed Images

Main Characters:

1. Excellent quality of light beam: smaller focus facula, more fine cutting line, higher working efficiency, better processing quality.
2. Highly cutting speed: the 2 times by co2 laser cutting machine under the same power.
3. Very high stability: adopt world top imported fiber laser source , stable performance, the using life of key parts can reach up to 100 thousands hours.
4. Very high efficiency of photoelectric conversion: of which fiber laser cutting machine is 3 times by co2 laser cutting machine, saving the energy and protecting environment.
5. Very low using cost: power consumption of whole machine is only 20-30% of co2 laser cutting machine under same power.
6. Very low maintenance cost: no working gas for laser source; fiber transmission, no need the reflecting lens; can save large maintenance cost.
7. Convenient product operation and maintenance: fiber transmission, no need to adjust the optical path.
8. Very strong soft optical effects: compact volume and structure, which is easy for soft processing requirement.
9. The machine tool adopts gantry double driving structure, high damping machine tool bed, good rigid, which can suffer very high speed and acceleration.
10. This model adopts imported AC servo system driver and imported transmission system, the moving structure of machine tool adopts imported gear and rack transmission, linear guide track for guiding, ensuring the high speed、high precision and high reliability of equipment.
11. Rack and guide adopt fullly enclosed protective device, which prevents oil free friction movement and dust pollution, enhances using life of transmission parts and ensures the precision of machine tool movement.
12. Professional laser cutting machine, cnc control system, computer operation, can ensure the cutting quality, and more convenient for cutting work.


Application field:
Widely used in aviation, aerospace, weapons, ships, automobiles, petrochemicals, medical, mechanical parts, electrical meter parts, saw blades, spring-chip, hardware, knife-volume, sheet metal structures, high-low-voltage electrical cabinet production, production of advertising signs, metal crafts, kitchwear, decorating and other industries.

Packing & Delivery
Our Company
FAQ

1.Are you factory or foreign trade company?
We are industry and trade integration.

2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached,it is very simple. We have telephone and email support at 24 hours a day.

3.What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement.
